Abacus.Internal.Metric< T > Class Template Reference

Abstract base class for all Metric types; Create a new Metric class by inheriting from this More...

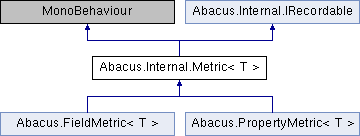

Inheritance diagram for Abacus.Internal.Metric< T >:

Public Member Functions
void	AttachVariable (Component component, string variableName)
	Attach a variable to the metric to be recorded More...
object	Dump ()
	Returns the metric's data as an object to be serialized More...
string	GetVariableName ()
	The name of the variable that this Metric records More...
Type	GetValueType ()
	The type that this Metric records More...
abstract T	GetValue ()
T	GetLastRecordedValue ()
	The last value recorded by this metric More...
void	Record ()
	Records the current value of the attached variable More...
void	SetSource (Component component)
	Sets the component that the metric retrieves a field or property from More...
void	SetTimeStep (float timeStep)
	Sets the time step for the recorder More...
void	Enable ()
	Enables the metric recorder More...
void	Disable ()
	Disables the metric recorder More...

Public Attributes
float	TimeStep => _timeStep
	The time step duration of the metric recorder More...
bool	IsEnabled => _isEnabled
	Whether the metric recorder is enabled More...

Protected Attributes
bool	_recordOnStart = true
float	_timeStep = 1f
bool	_isEnabled = false
GameObject	recordGameObject
Component	recordFrom
int	recordFromIndex
string	recordName
int	recordNameIndex
Type	componentType
float	startTime
T	_lastRecordedValue
T	_previousValue

Properties
abstract bool	RetrievedMember [get]
	Whether the metric recorder has retrieved the field/property it will record the value of More...
List< DataPoint< T > >	History = new List<DataPoint<T>>() [get]
	The history of recorded values for this metric More...
Properties inherited from Abacus.Internal.IRecordable
float	TimeStep [get]
bool	IsEnabled [get]

Detailed Description

Abstract base class for all Metric types; Create a new Metric class by inheriting from this

Template Parameters

T	The data type for the metric to hold

Member Function Documentation

AttachVariable()

void Abacus.Internal.Metric< T >.AttachVariable	(	Component	component,
		string	variableName
	)

Attach a variable to the metric to be recorded

Parameters

component	The component the variable is a member of
variableName	The variable name as a string

Disable()

void Abacus.Internal.Metric< T >.Disable

(

)

Disables the metric recorder

Implements Abacus.Internal.IRecordable.

Dump()

object Abacus.Internal.Metric< T >.Dump

(

)

Returns the metric's data as an object to be serialized

Returns

The metric's data as an object

Implements Abacus.Internal.IRecordable.

Enable()

void Abacus.Internal.Metric< T >.Enable

(

)

Enables the metric recorder

Implements Abacus.Internal.IRecordable.

GetLastRecordedValue()

T Abacus.Internal.Metric< T >.GetLastRecordedValue

(

)

The last value recorded by this metric

Returns

The last value recorded by this metric

GetValueType()

Type Abacus.Internal.Metric< T >.GetValueType

(

)

The type that this Metric records

Returns

The type that this Metric records for

Implements Abacus.Internal.IRecordable.

GetVariableName()

string Abacus.Internal.Metric< T >.GetVariableName

(

)

The name of the variable that this Metric records

Returns

The type that this Metric records for

Implements Abacus.Internal.IRecordable.

Record()

void Abacus.Internal.Metric< T >.Record

(

)

Records the current value of the attached variable

Implements Abacus.Internal.IRecordable.

SetSource()

void Abacus.Internal.Metric< T >.SetSource

(

Component

component

)

Sets the component that the metric retrieves a field or property from

Parameters

component

Implements Abacus.Internal.IRecordable.

SetTimeStep()

void Abacus.Internal.Metric< T >.SetTimeStep

(

float

timeStep

)

Sets the time step for the recorder

Parameters

timeStep

The new time step duration (s)

Member Data Documentation

IsEnabled

bool Abacus.Internal.Metric< T >.IsEnabled => _isEnabled

Whether the metric recorder is enabled

TimeStep

float Abacus.Internal.Metric< T >.TimeStep => _timeStep

The time step duration of the metric recorder

Property Documentation

History

List<DataPoint<T> > Abacus.Internal.Metric< T >.History = new List<DataPoint<T>>()

get

The history of recorded values for this metric

RetrievedMember

abstract bool Abacus.Internal.Metric< T >.RetrievedMember

get

Whether the metric recorder has retrieved the field/property it will record the value of

---

The documentation for this class was generated from the following file:

• Metric.cs
